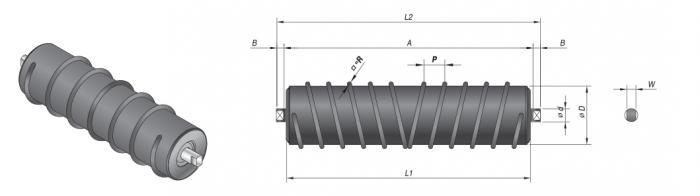

스파이럴 리턴롤러 Spiral Return Roller

□ 표준규격

Belt
Width		 Type Dimension BearIng
No.		 Weight
(kg)
ØOD ØD Ød L1 L2 A B W ØR P
400

SPR-400

90.3

 76.3 20 460 505 480 11 14 7 40 6204zz 9.48
450 SPR-450 90.3

76.3

 20 510 555 530 11 14 7 40 6204zz 10.02
500 SPR-500 90.3 76.3 20 560 605 580 11 14 7 40 6204zz 10.53
600

SPR-600-1

 90.3 76.3 20 660 705 680 11 14 7 40 6204zz 11.82
SPR-600-2 115 89.1 20 660 705 680 11 14 13 50 6204zz 14.98
750 SPR-750 115 89.1 20 850

905

 880 11 14 13 50 6204zz 18.54
900 SPR-900 115 89.1

20

 1000 1055 1030 11 14 13 50 6204zz 20.96
1050

SPR-1050

 140 114

25

 1150 1212 1180 15 18 13 60 6205zz 30.02
1200 SPR-1200

140

 114 25 1300 1362 1330 15 18 13 60 6205zz 32.99
1400 SPR-1400 165 140 30 1510 1585 1550 15 22.4 13 65 6206zz 48.38
1600 SPR-1600 165 140 30 1710 1785 1750 15 22.4 13 65 6206zz 54.02
1800 SPR-1800 165 140 35 2000 2075 2040 15 25 13 65 6207zz 65.33
2000 SPR-2000 165 140 35 2200 2275 2240 15 25 13 65 6207zz 71.01
2200 SPR-2200 165 140 40 2400 2475 2440 15 31 13 65 6308zz

83.53
2400 SPR-2400 165 140 40

2600

 2675 2640 15 31 13 65 6308zz 91.02
