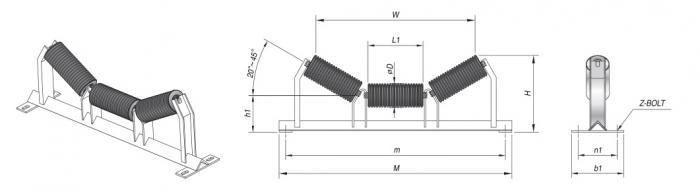

□ 표준규격



Belt Width	Dimension															Weight (kg)
	ØD	L1	M	m	h1	n1	b1	H			W			Z	Angle
								20°	30°	45°	20°	30°	45°
400	89.1	145	690	640	125	150	200	225	235	275	470	435	365	M12	L50 x 6t	13.4
450	89.1	165	740	690	125	150	200	230	245	290	525	490	415	M12	L50 x 6t	14.3
500	89.1	180	790	740	125	150	200	235	250	300	570	535	450	M12	L50 x 6t	15.1
600	89.1	210	890	840	140	150	200	260	280	340	660	615	465	M12	L65 x 6t	18.2
750	114.3	265	1090	1040	150	160	220	300	325	395	810	750	530	M12	L65 x 6t	24.1
900	114.3	315	1240	1190	150	160	220	320	345	430	980	890	765	M12	L75 x 6t	27.7
1050	139.8	370	1390	1340	180	180	240	385	411	515	1140	1055	910	M12	L75 x 6t	37.8
1200	139.8	420	1540	1490	180	180	240	400	435	550	1280	1195	1030	M12	L90 x 6t	49.1
1400	165.2	500	1790	1730	250	280	340	510	550	690	1515	1435	1235	M16	L100 x 10t	73.9
1600	165.2	580	1990	1930	250	280	340	540	585	750	1745	1650	1430	M16	L100 x 10t	95.2
1800	165.2	650	2280	2220	280	330	390	590	645	830	1980	1825	1605	M16	L130 x 9t	114.6
2000	165.2	730	2480	2420	280	330	390	620	680	835	2180	2040	1800	M16	L130 x 9t	129.9
2200	165.2	800	2680	2620	300	330	390	665	730	955	2380	2235	1970	M20	L130 x 12t	162.7
2400	165.2	880	2880	2820	300	330	390	690	760	1015	2615	2450	2160	M20	L130 x 12t	184.8
