□ 표준규격

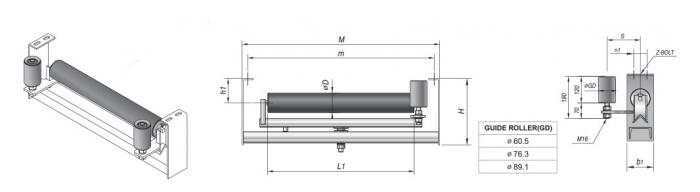

Belt Width	Dimension											Weight (kg)
	ØD	L1	M	m	H	h1	n1	b1	S	Z	Channel
					0 ˚
400	89.1	460	690	640	310	100	60	130	150	M12	100 x 50	23.2
450	89.1	510	740	690	310	100	60	130	150	M12	100 x 50	25.9
500	89.1	560	790	740	320	100	60	130	150	M12	100 x 50	28.1
600	89.1	660	890	840	320	100	60	130	150	M12	100 x 50	30.4
750	114.3	860	1090	1040	340	100	60	130	180	M12	100 x 50	38.2
900	114.3	1000	1240	1190	340	100	60	130	180	M12	100 x 50	44.3
1050	139.8	1150	1390	1340	390	120	100	150	180	M12	125 x 65	60.4
1200	139.8	1300	1540	1490	390	120	100	150	180	M12	125 x 65	68.2
1400	165.2	1510	1790	1730	520	150	120	220	250	M16	150 x 75	98.2
1600	165.2	1710	1990	1930	520	150	120	220	250	M16	150 x 75	111.5
1800	165.2	2000	2280	2220	540	150	120	220	250	M16	150 x 75	146.5
2000	165.2	2200	2480	2420	540	150	120	220	250	M16	150 x 75	156.2
2200	165.2	2400	2680	2620	620	180	150	250	250	M20	200 x 80	162.2
2400	165.2	2600	2880	2820	620	180	150	250	250	M20	200 x 80	176.5
